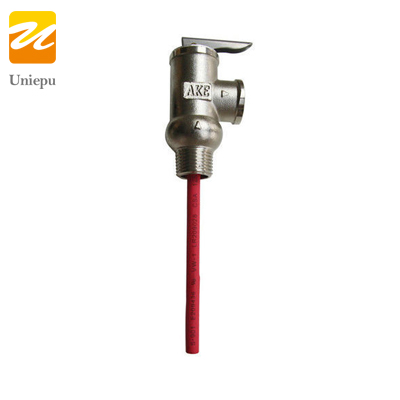

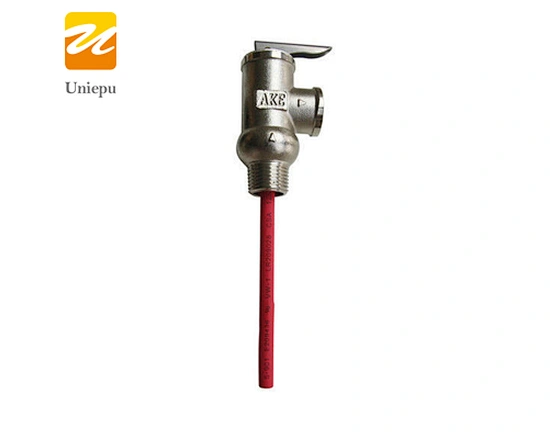

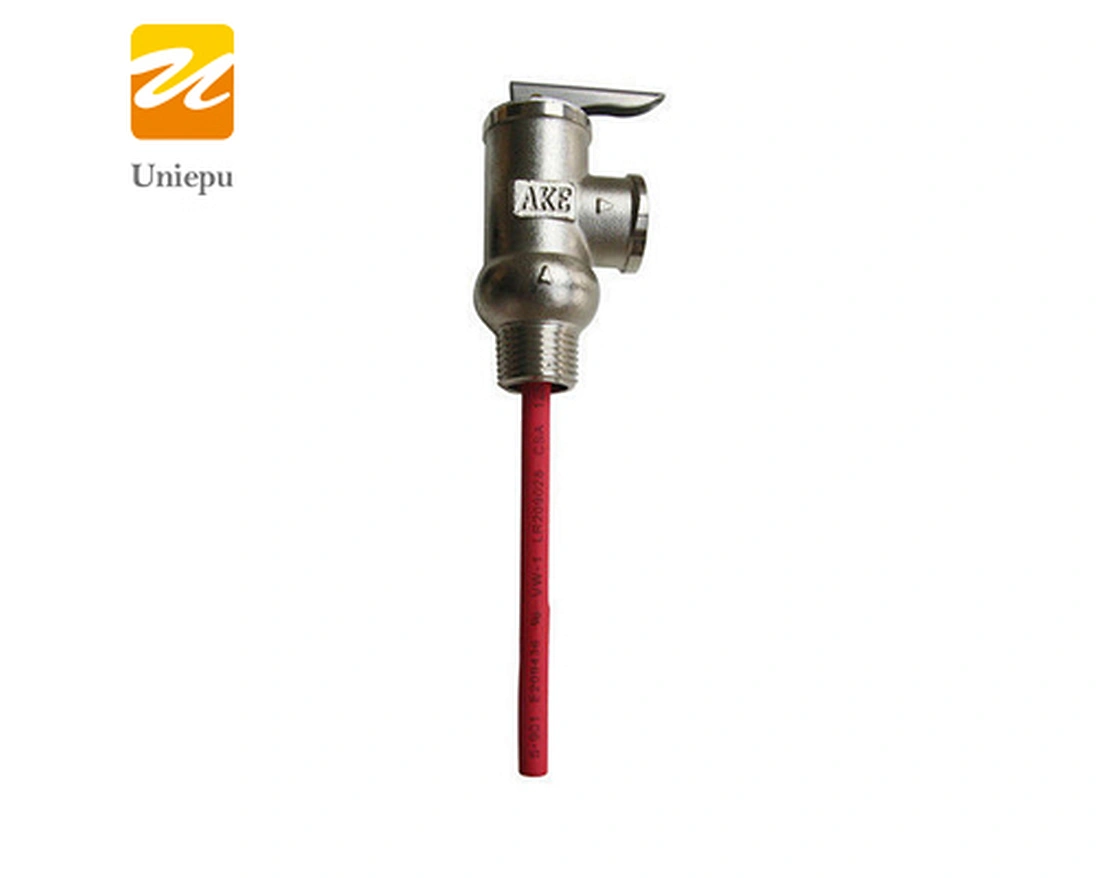

Solar Water Heater Pressure Temperature Valve ( PT Valve )

Solar Water Heater Pressure Temperature Valve ( PT Valve )

  • Model NO.: UP-PTValve
  • Min order:100 pieces
  • Accept Min order:Yes
  • Supply Ability:1000000 pieces / Week
  • Country of Origin:China
  • Stock Time:20 Days


Size:  3/4”
Temperature Rating: 90 Degrees Celsius
Pressure Rating:8 Bars / 116 PSI


  • The Pressure Temperature (TP) Valve is designed to protect the users and tank of the solar water heater.
  • The PT relief valve controls the temperature and pressure of the system within safe parameters.
  • Preventing hot water from being able to reach temperatures of over 90°C and pressure in excess of 8 Bars (116 PSI).
  • On reaching these settings, the valve discharges a sufficient amount of water into the atmosphere so that the temperature and pressure return to within the system’s safe operating limits.


  • Place of Origin:China
  • Brand Name:Uniepu
  • Model Number:UP-PTValve
  • Type:Other
