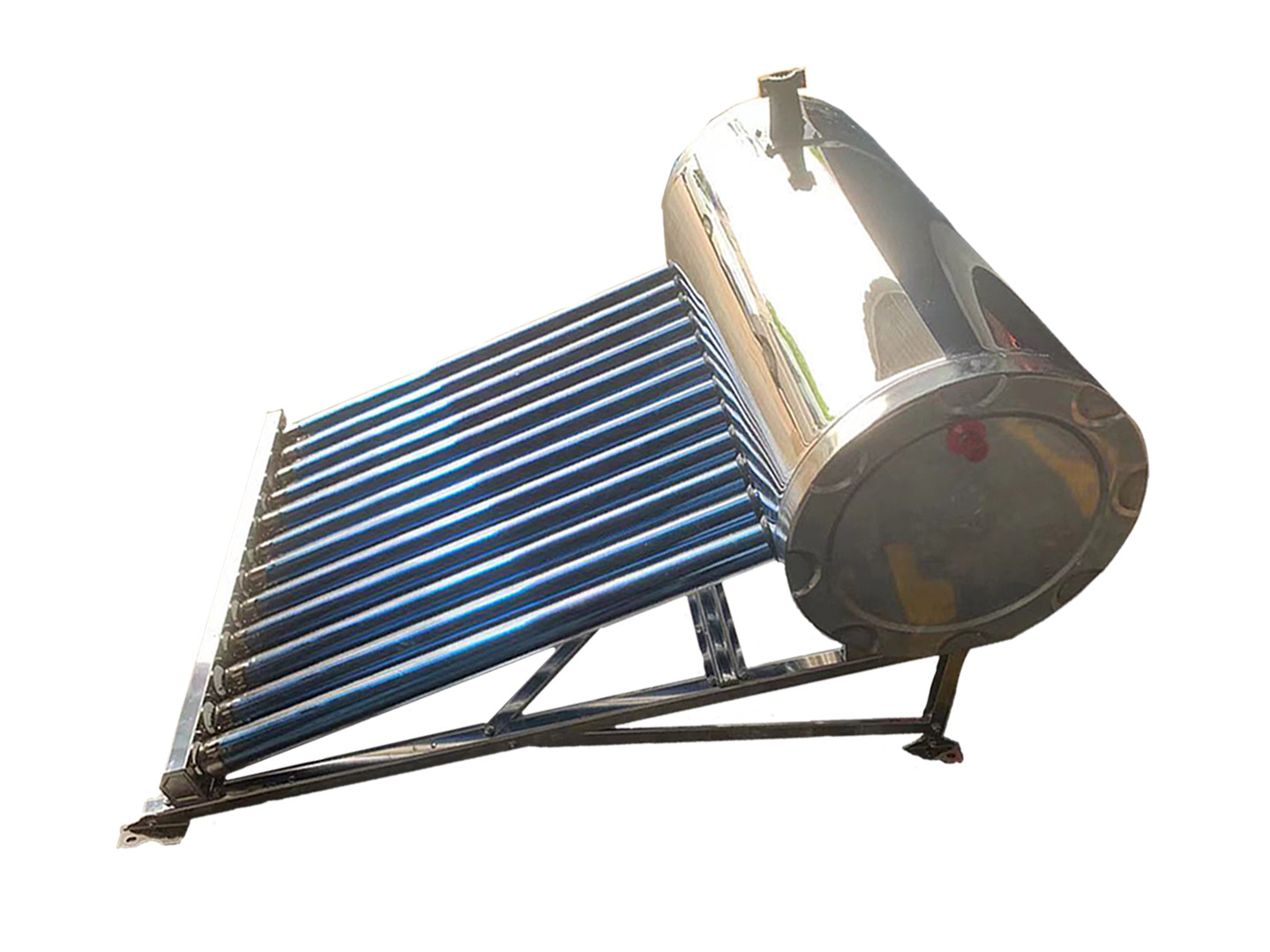

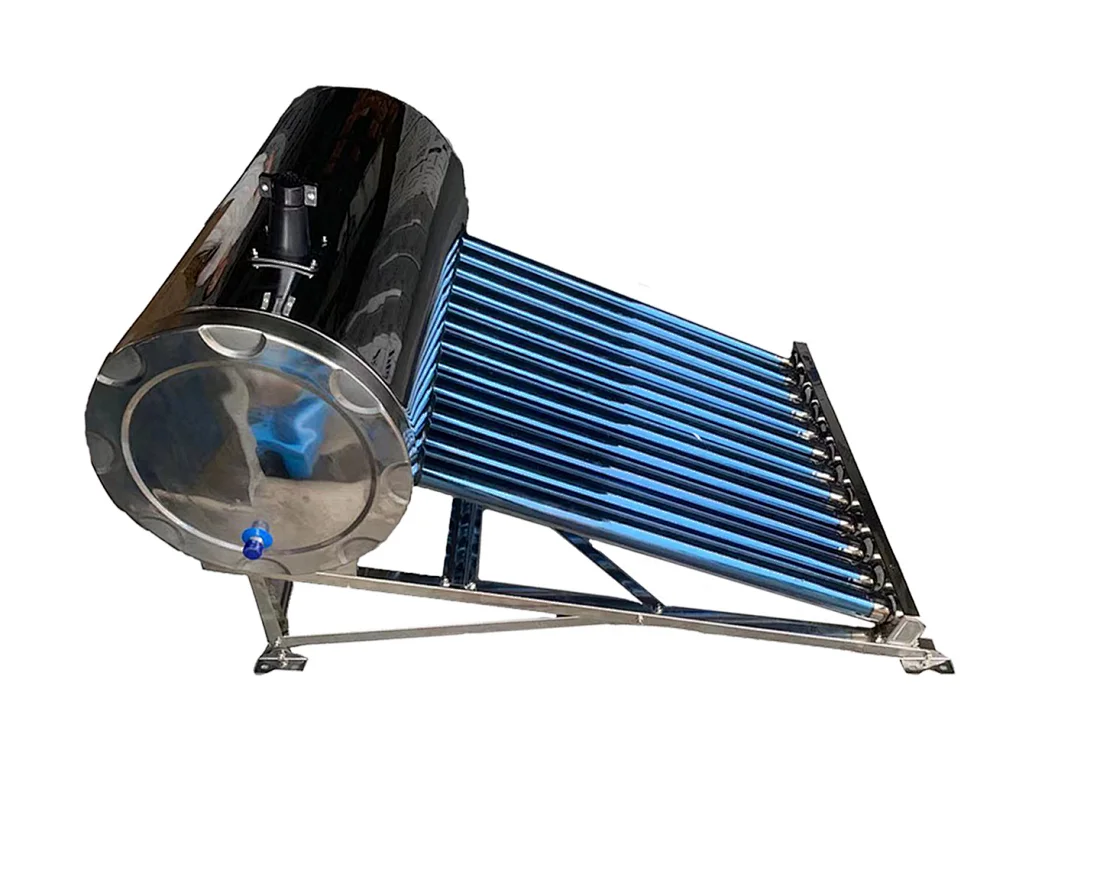

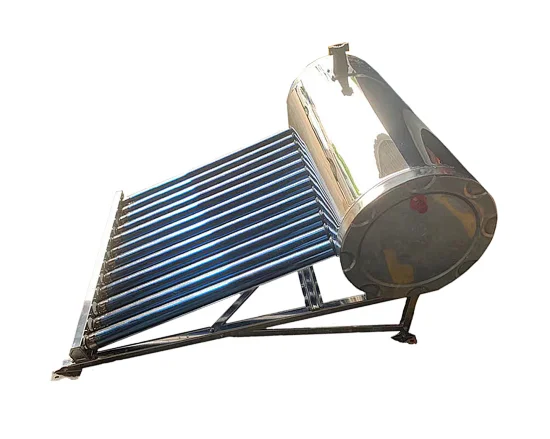

9 Type Frame Stainless Steel 0.41mm Standard Quality
9 Type Frame Stainless Steel 0.41mm Standard Quality
9 Type Frame Stainless Steel 0.41mm Standard Quality
9 Type Frame Stainless Steel 0.41mm Standard Quality
9 Type Frame Stainless Steel 0.41mm Standard Quality
9 Type Frame Stainless Steel 0.41mm Standard Quality
9 Type Frame Stainless Steel 0.41mm Standard Quality

9 Type Frame Stainless Steel 0.41mm Standard Quality

Model NO.
58/1800/SS-M9-S
Delivery:
FOB
Minimum order quantity:
20 sets
Supply Ability:
300 sets / Day
Country of Origin:
China
Stock Time:
20 Days
Quantity:

Overview

Product Info

ModelQuantity/40HQ
58/1800/8SS-M9-S238
58/1800/10SS-M9-S193
58/1800/12SS-M9-S171
58/1800/15SS-M9-S150
58/1800/18SS-M9-S113
58/1800/20SS-M9-S104
58/1800/24SS-M9-S88
58/1800/30SS-M9-S67

Specification

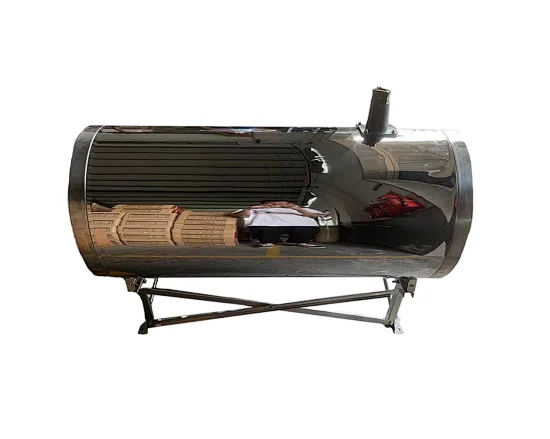

Inner tank304-2B stainless steel (food grade), argon arc welding. thickness 0.41 mm. 360mm diameter
Outside tankStainless steel, Thickness: 0.31mm diameter 450/460mm
Insulation layerPUF polyurethane foam, 45/50 mm thick, density: 35 kg / m3
Frame (as the photo above)9 type of galvanized steel, angle: 20/38/45 degrees. 1.2 mm
Vacuum tubes58 / 1800mm, whole glass vacuum tubes adopt super hard borax and silica glass. Efficiency: 91% -94%, weight 1.95kgs with copper heat pipe
Outlet and inletArgon welding, standard male 3/4 'NPT nipple, one inlet, one outlet and one drain, one reserved for PT/Air valve.
Optional accessories (additional cost)Magnesium bar, manual, logo printing on tanks, PT valve, Air valve, Check valve

Advantage

Typically characterized by vacuum glass tubes connected directly into a tank with a small holding tank on top of it. ... The evacuated glass tubes are filled with water and exposed to sun, thus heating up the water in the glass tubes.


Información del producto

ModeloCantidad/40HQ
58/1800/8SS-M9-S238
58/1800/10SS-M9-S193
58/1800/12SS-M9-S171
58/1800/15SS-M9-S150
58/1800/18SS-M9-S113
58/1800/20SS-M9-S104
58/1800/24SS-M9-S88
58/1800/30SS-M9-S67

Especificación

Tanque interior:acero inoxidable 304-2B (grado alimenticio), soldadura por arco de argón. espesor 0,41 mm. 360 mm de diámetro
Tanque exterior:Acero inoxidable, Espesor: 0,31 mm 450/460 mm de diámetro
Capa de aislamiento:Espuma de poliuretano PUF, 45/50 mm de espesor, densidad: 35 kg / m3
Marco (como la foto de arriba): 9 tipo de acero galvanizado, ángulo: 20/38/45 grados. 1.2 mm
Tubos de vacio:58/1800 mm, los tubos de vacío de vidrio entero adoptan bórax superduro y vidrio de sílice.Eficiencia: 91% -94%, peso 1.95kgs con tubo de calor de cobre
Salida y entrada Soldadura de argón, niple macho estándar de 3/4 'NPT, una entrada, una salida y un drenaje, uno reservado para PT / válvula de aire.
Accesorios opcionales (costo adicional):Barra de magnesio, manual, impresión de logotipo en tanques, válvula PT, válvula de aire, válvula de retención

Ventaja

Normalmente se caracteriza por tubos de vidrio de vacío conectados directamente a un tanque con un pequeño tanque de retención encima. ... Los tubos de vidrio evacuados se llenan de agua y se exponen al sol, calentando así el agua de los tubos de vidrio.

  • Type:Evacuated Tube
  • Pressure:Unpressurized
  • Circulation Type:Direct / Open Loop (Active)
  • Heating System:Thermosyphon (Passive); Batch / ICS (Passive)
  • Connection Type:Direct-Plug
  • Installation:Freestanding
  • Housing Material:Stainless Steel
  • Certification:GS; CSA; CE; UL
  • Capacity:80L/100L/120L/150L/180L/200L/240L/300L
  • Place of Origin:China
  • Brand Name:OEM
  • Model Number:58/1800/SS-M9-S
