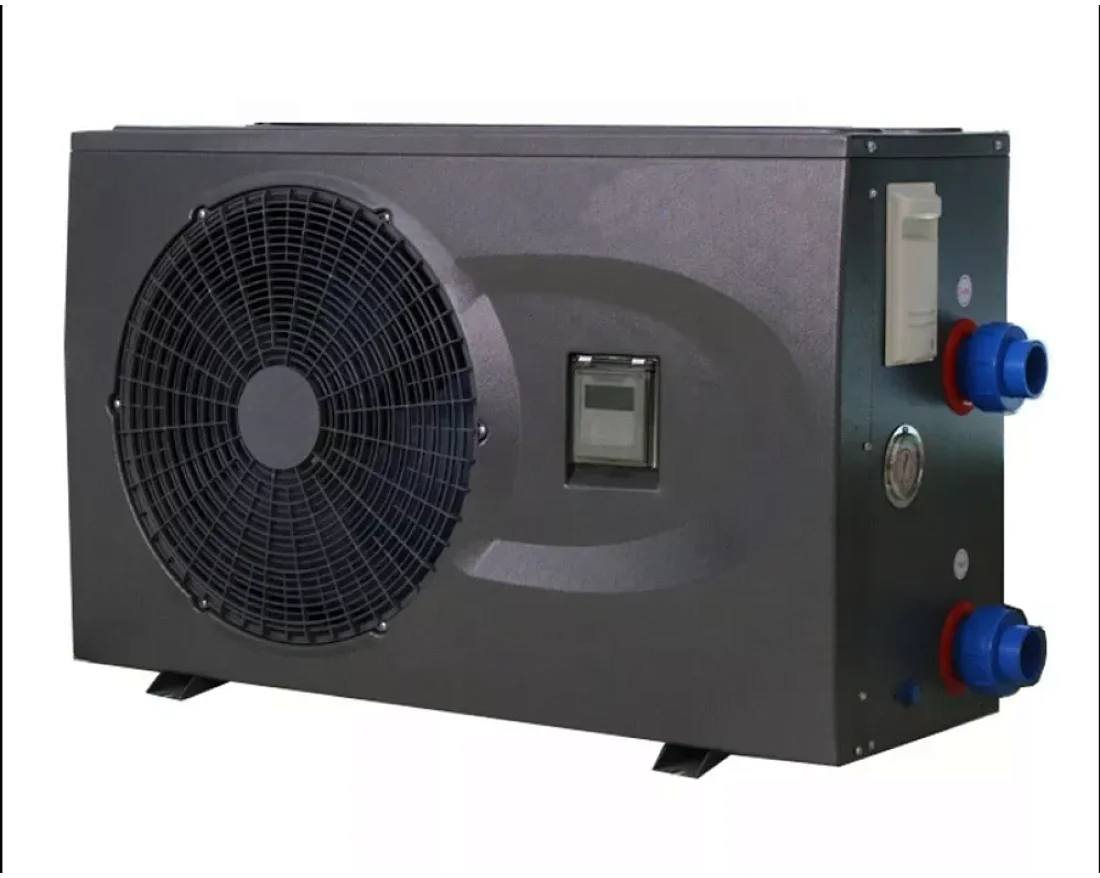

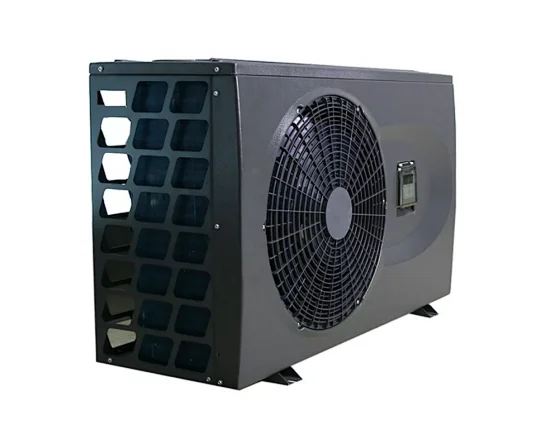

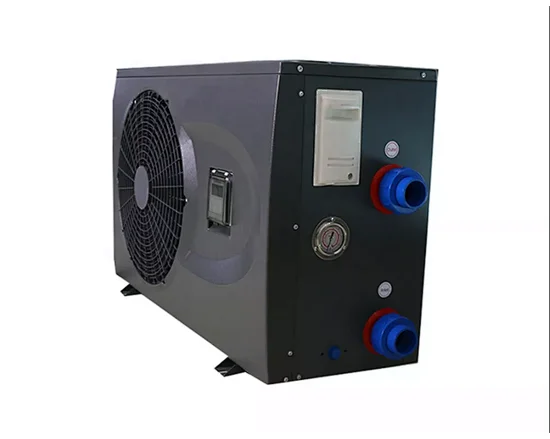

DC Inverter Swimming Pool Heat Pump
DC Inverter Swimming Pool Heat Pump

DC Inverter Swimming Pool Heat Pump

Model NO.
SPHP-101
Price:
US $ 632.38-1,326.16 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
500 set / Week
Country of Origin:
China
Stock Time:
31 Days
Quantity:
DC Inverter Swimming Pool Heat Pump
ModelDSP03PS-P2DDSP05PS-P5DDSP07PS-P7D
Advised pool volume30m³-60m³60m³-100m³70m³-130m³
Operating ambient air temperature﹣5℃~43℃﹣5℃~43℃﹣5℃~43℃
Performance condition 1-Air:26℃,RH80%,inlet/outlet water temperature:26℃/28℃
Heating capacityKW3.50-14.205.75-23.246.62-29.03
COP6.19-14.666.11-14.556.12-14.56
Performance condition 2-Air:15℃,RH70%,inlet water/outlet temperature:26℃/28℃
Heating capacityKW2.90-10.704.65-17.365.46-21.31
COP4.95-7.654.81-7.654.97-7.52
Performance condition 3-Air:35℃ DB,inlet/outlet water temperature:30℃/28℃
Cooing capacityKW3.25-7.905.33-12.836.21-16.02
EER4.40-7.404.15-7.254.31-7.55
Refrigerant typeR32R32R32
Power supply230V~,1Ph,50Hz230V~,1Ph,50Hz230V~,1Ph,50Hz
Inlet/outlet water pipesG1-1/2′G1-1/2′G1-1/2′
Advised water flowm³/h5~78~109~12
DimensionUnit(W×D×H)mm991×400×6421081×450×7071181×469×807
Packing(W×D×H)mm1056×449×7671146×498×8321246×518×932
Net/Gross weightKG46/5670/8390/108
Loading(40HQ/20GP)Pcs165/77144/4472/32
Notes:
1. Advised pool volume for the pool with isothermal cover.
2. The specification may be changed as product improvement, please refer to the final namepate on product.
ECO friendly new refrigerant: R32
ODP (Ozone Depletion Potential) is 0;
GWP (Global Warming Potential) only 675, only approximately 1/3 compare with R410A.

Higher effiffifficient technology:
Well-known brand GMCC compressor, twin-rotary and DC Inverter technology,
lower noise but more effiffifficient.
New Brushless DC fan motor, with good quality of long time running test and low noise.
Sanhua brand electronic expansion valve for precise refrigerant control.

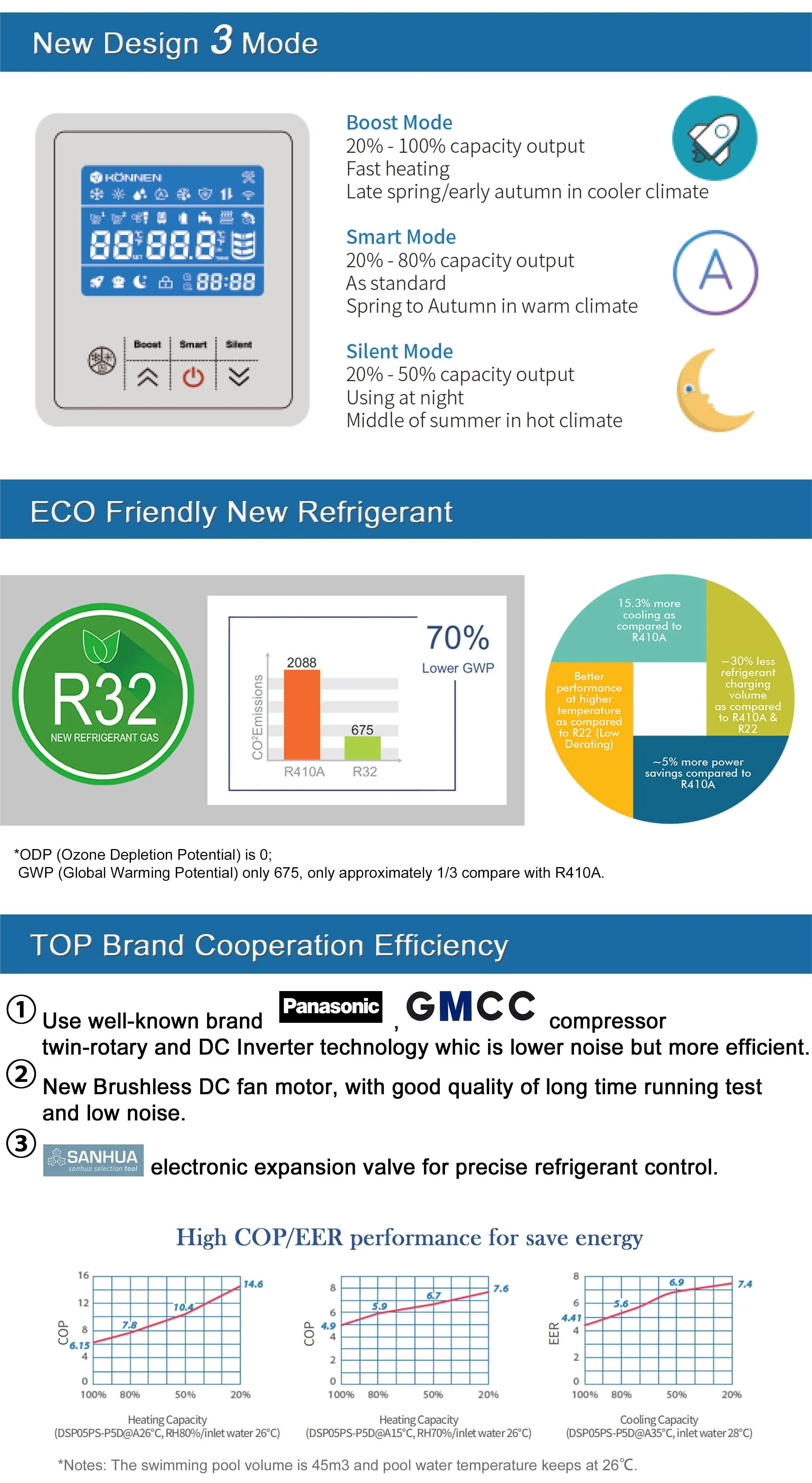

Newly designed controller, three modes design, maximise your pool season
Boost Mode
20% - 100% capacity output
Fast heating
Late spring/early autumn in cooler climate
Smart Mode
20% - 80% capacity output
As standard
Spring to Autumn in warm climate
Silent Mode
20% - 50% capacity output
Using at night
Middle of summer in hot climate
  • Type:Water Source Heat Pump
  • Installation:Freestanding
  • Housing Material:Plastic
  • Use:Swimming Pool Heater
  • Certification:CE; CSA
  • Place of Origin:China
  • Brand Name:Your Brand
  • Model Number:SPHP-101
  • Color:Light White
