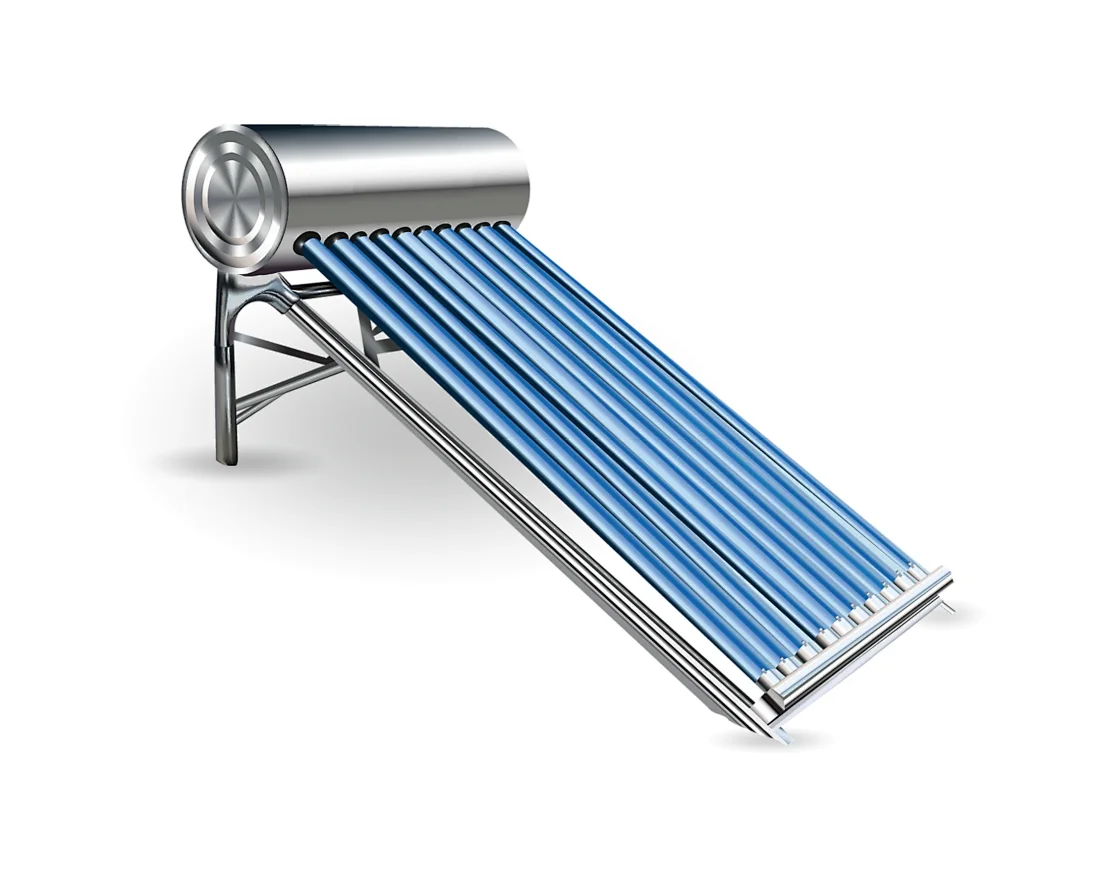

5 Types Frame Stainless Steel 0.31mm Economic Quality
5 Types Frame Stainless Steel 0.31mm Economic Quality

5 Types Frame Stainless Steel 0.31mm Economic Quality

Model NO.
58/1800/SS-M5-E
Delivery:
FOB
Minimum order quantity:
20 sets
Supply Ability:
300 sets / Day
Country of Origin:
China
Stock Time:
20 Days
Quantity:

Overview

Product Info

ModelQuantity/40HQ
58/1800/8SS-M5-E238
58/1800/10SS-M5-E193
58/1800/12SS-M5-E171
58/1800/15SS-M5-E150
58/1800/18SS-M5-E113
58/1800/20SS-M5-E104
58/1800/24SS-M5-E88
58/1800/30SS-M5-E67

Specification

Inner tank304-2B stainless steel (food grade), argon arc welding. thickness 0.31 mm. 360mm diameter
Outside tankStainless steel, Thickness: 0.31mm diameter 450mm
Insulation layerPUF polyurethane foam, 45/50mm thick, density: 35kg/m3
Frame (as the photo above)5 types of galvanized steel, angle: 20/38/45 degrees. 1.0mm
Vacuum tubes58 / 1800mm, whole glass vacuum tubes adopt super hard borax and silica glass. Efficiency: 91% -94%, weight 1.95kgs with copper heat pipe
Outlet and inletArgon welding, standard male 3/4 'NPT nipple, one inlet, one outlet and one drain, one reserved for PT/Air valve.
Optional accessories (additional cost)Magnesium bar, manual, logo printing on tanks, PT valve, Air valve, Check valve


Información del producto

ModeloCantidad/40HQ
58/1800/8SS-M5-E238
58/1800/10SS-M5-E193
58/1800/12SS-M5-E171
58/1800/15SS-M5-E150
58/1800/18SS-M5-E113
58/1800/20SS-M5-E104
58/1800/24SS-M5-E88
58/1800/30SS-M5-E67

Especificación

Tanque interior:acero inoxidable 304-2B (grado alimenticio), soldadura por arco de argón. espesor 0.31 mm. 360mm de diámetro
Tanque exterior:Acero inoxidable, Espesor: 0.31 mm 450mm de diámetro
Capa de aislamiento:Espuma de poliuretano PUF, 45/50mm de espesor, densidad: 35kg/m3
Marco (como la foto de arriba): 5 tipos de acero galvanizado, ángulo: 20/38/45 grados. 1.0mm
Tubos de vacio:58/1800 mm, los tubos de vacío de vidrio entero adoptan bórax superduro y vidrio de sílice.Eficiencia: 91% -94%, peso 1.95kgs con tubo de calor de cobre
Salida y entrada Soldadura de argón, niple macho estándar de 3/4 'NPT, una entrada, una salida y un drenaje, uno reservado para PT / válvula de aire.
Accesorios opcionales (costo adicional):Barra de magnesio, manual, impresión de logotipo en tanques, válvula PT, válvula de aire, válvula de retención

  • Type:Evacuated Tube
  • Pressure:Unpressurized
  • Circulation Type:Direct / Open Loop (Active)
  • Heating System:Thermosyphon (Passive); Batch / ICS (Passive)
  • Connection Type:Direct-Plug
  • Installation:Freestanding
  • Housing Material:Stainless Steel
  • Certification:GS; CSA; CE; UL
  • Capacity:80L/100L/120L/150L/180L/200L/240L/300L
  • Place of Origin:China
  • Brand Name:OEM
  • Model Number:58/1800/SS-M5-E
