7-Type Frame Stainless Steel 0.41mm Standard Quality
58/1800/SS-M7-S
FOB
20 sets
300sets / Day
China
20Day
Quantity:
Overview
Product Info
| Model | Quantity/40HQ |
| 58/1800/8SS-M7-S | 235 |
| 58/1800/10SS-M7-S | 190 |
| 58/1800/12SS-M7-S | 165 |
| 58/1800/15SS-M7-S | 145 |
| 58/1800/18SS-M7-S | 110 |
| 58/1800/20SS-M7-S | 100 |
| 58/1800/24SS-M7-S | 85 |
| 58/1800/30SS-M7-S | 64 |
Specification
| Inner tank | 304-2B stainless steel (food grade), argon arc welding. thickness 0.41 mm. 360mm diameter |
| Outside tank | Stainless steel, Thickness: 0.31mm diameter 450/460mm |
| Insulation layer | PUF polyurethane foam, 45/50 mm thick, density: 35 kg / m3 |

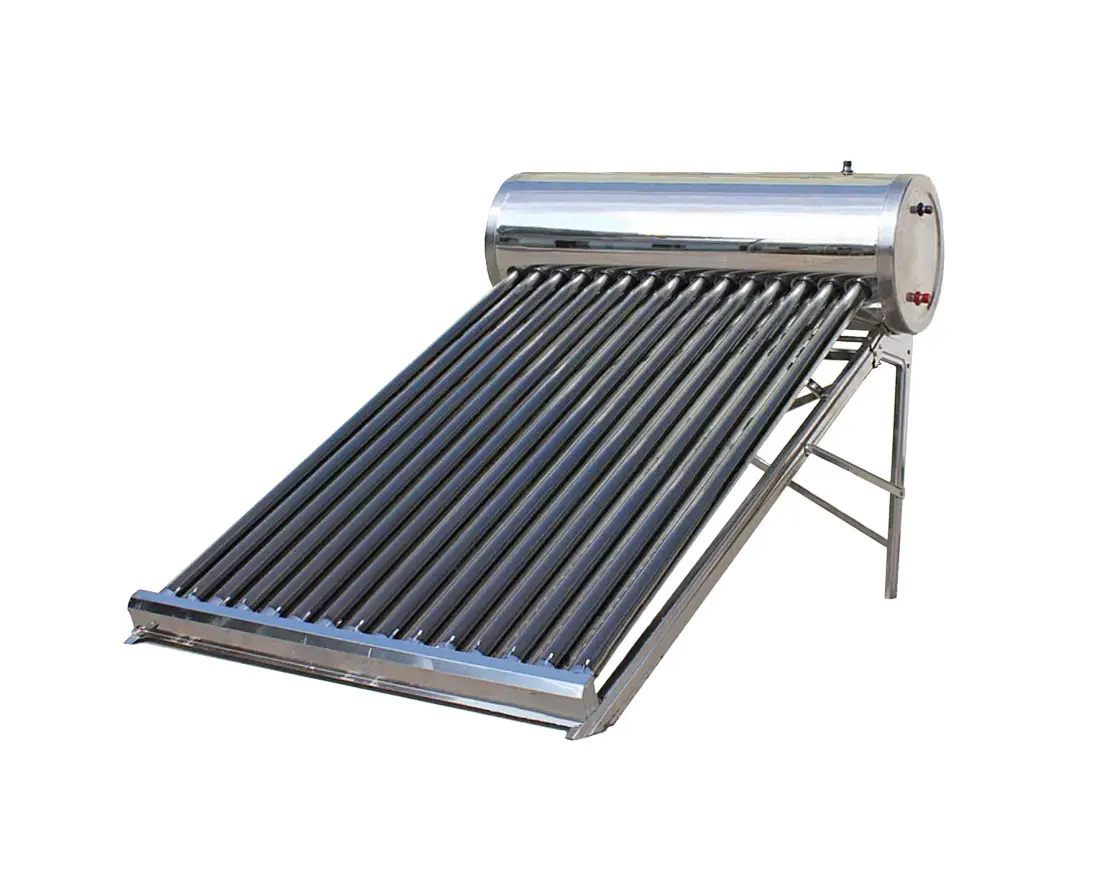

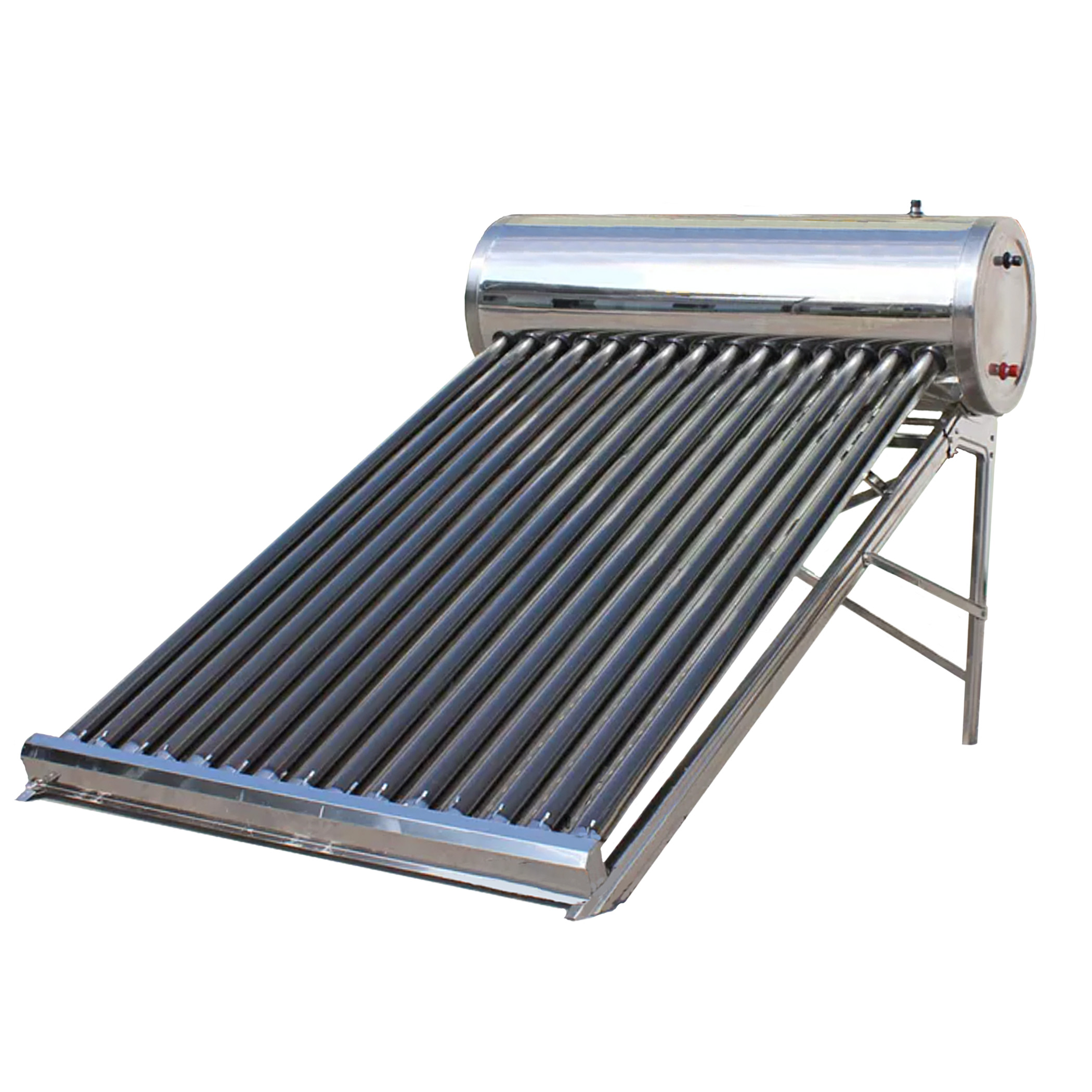

| Frame (as the photo above) | 7 type of galvanized steel, angle: 20/38/45 degrees. 1.2 mm |
| Vacuum tubes | 58 / 1800mm, whole glass vacuum tubes adopt super hard borax and silica glass. Efficiency: 91% -94%, weight 1.95kgs with copper heat pipe |
| Outlet and inlet | Argon welding, standard male 3/4 'NPT nipple, one inlet, one outlet and one drain, one reserved for PT/Air valve. |
| Optional accessories (additional cost) | Magnesium bar, manual, logo printing on tanks, PT valve, Air valve, Check valve |
Información del producto
| Modelo | Cantidad/40HQ |
| 58/1800/8SS-M7-S | 235 |
| 58/1800/10SS-M7-S | 190 |
| 58/1800/12SS-M7-S | 165 |
| 58/1800/15SS-M7-S | 145 |
| 58/1800/18SS-M7-S | 110 |
| 58/1800/20SS-M7-S | 100 |
| 58/1800/24SS-M7-S | 85 |
| 58/1800/30SS-M7-S | 64 |
Especificación
| Tanque interior: | acero inoxidable 304-2B (grado alimenticio), soldadura por arco de argón. espesor 0.41 mm. 360 mm de diámetro |
| Tanque exterior: | Acero inoxidable, Espesor: 0,31 mm 450/460 mm de diámetro |
| Capa de aislamiento: | Espuma de poliuretano PUF, 50 mm de espesor, densidad: 35 kg / m3 |
| Marco (como la foto de arriba): | 7 tipos de acero galvanizado, ángulo: 20/38/45 grados. 1.2 mm |
| Tubos de vacio: | 58/1800 mm, los tubos de vacío de vidrio entero adoptan bórax superduro y vidrio de sílice.Eficiencia: 91% -94%, peso 1.95kgs con tubo de calor de cobre |
| Salida y entrada | Soldadura de argón, niple macho estándar de 3/4 'NPT, una entrada, una salida y un drenaje, uno reservado para PT / válvula de aire. |
| Accesorios opcionales (costo adicional): | Barra de magnesio, manual, impresión de logotipo en tanques, válvula PT, válvula de aire, válvula de retención |
