Overview
Product Info
| Model | Quantity/40HQ |
| 58/1800/8SS-MU-G | 238 |
| 58/1800/10SS-MU-G | 193 |
| 58/1800/12SS-MU-G | 171 |
| 58/1800/15SS-MU-G | 150 |
| 58/1800/18SS-MU-G | 113 |
| 58/1800/20SS-MU-G | 104 |
| 58/1800/24SS-MU-G | 88 |
| 58/1800/30SS-MU-G | 67 |
Specification
| Inner tank | 304-2B stainless steel (food grade), argon arc welding. thickness 0.41mm. 360mm diameter |
| Outside tank | Galvanized steel, Thickness: 0.31mm diameter 450/460mm |
| Insulation layer | PUF polyurethane foam, 45/50mm thick, density: 35kg/m3 |

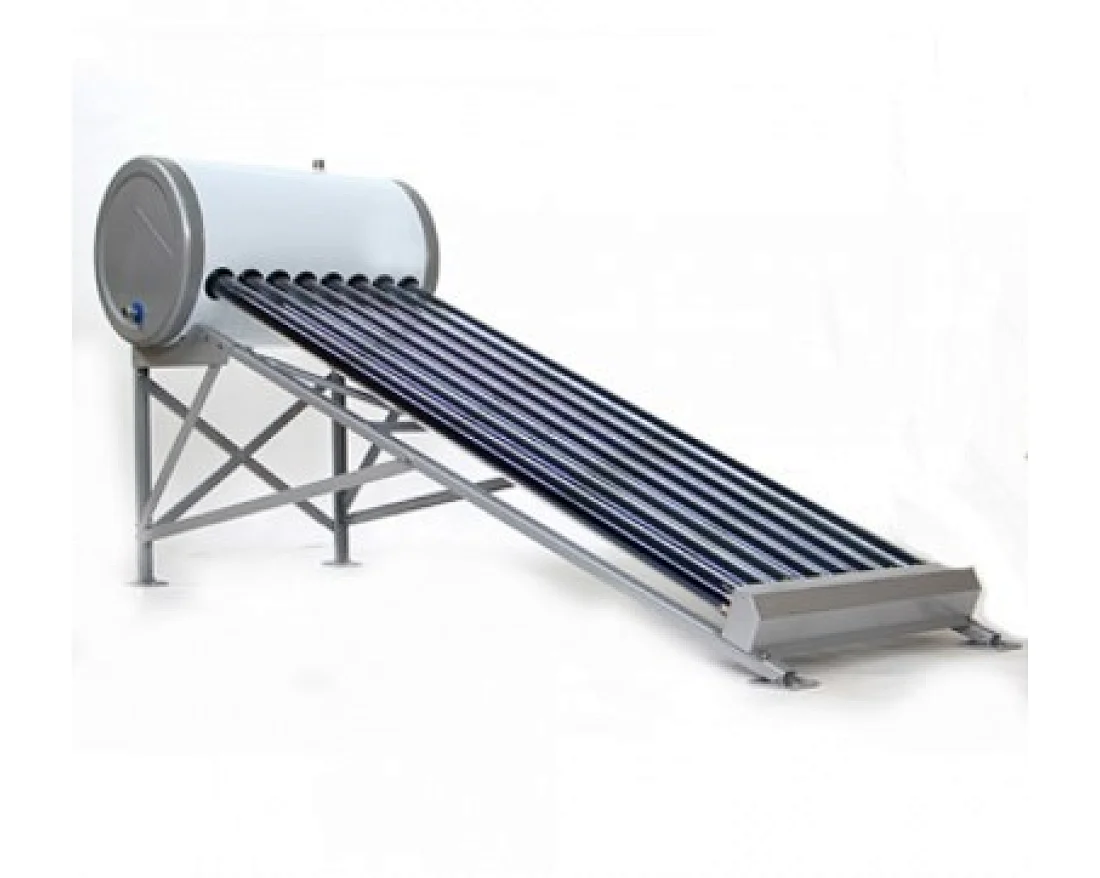

| Frame (as the photo above) | U-type of galvanized steel, angle: 20/38/45 degree. 1.5mm |
| Vacuum tubes | 58 / 1800mm, whole glass vacuum tubes adopt super hard borax and silica glass. Efficiency: 91% -94%, weight 1.95kgs with copper heat pipe. |
| Outlet and inlet | Argon welding, standard male 3/4 'NPT nipple, one inlet, one outlet and one drain, one reserved for PT/Air valve. |
| Optional accessories (additional cost) | Magnesium bar, manual, logo printing on tanks, PT valve, Air valve, Check valve |
Información del producto
| Modelo | Cantidad/40HQ |
| 58/1800/8SS-MU-G | 238 |
| 58/1800/10SS-MU-G | 193 |
| 58/1800/12SS-MU-G | 171 |
| 58/1800/15SS-MU-G | 150 |
| 58/1800/18SS-MU-G | 113 |
| 58/1800/20SS-MU-G | 104 |
| 58/1800/24SS-MU-G | 88 |
| 58/1800/30SS-MU-G | 67 |
Especificación
| Tanque interior: | acero inoxidable 304-2B (grado alimenticio), soldadura por arco de argón. espesor 0,41 mm. 360 mm de diámetro |
| Tanque exterior: | Acero galvanizado, Espesor: 0,31mm 450/460 mm de diámetro |
| Capa de aislamiento: | Espuma de poliuretano PUF, 45/50mm de espesor, densidad: 35 kg/m3 |
| Marco (como la foto de arriba): | Tipo U de acero galvanizado, ángulo: 20/38/45 grados. 1.5 mm |
| Tubos de vacio: | 58/1800 mm, los tubos de vacío de vidrio entero adoptan bórax superduro y vidrio de sílice.Eficiencia: 91% -94%, peso 1.95kgs con tubo de calor de cobre. |
| Salida y entrada | Soldadura de argón, niple macho estándar de 3/4 'NPT, una entrada, una salida y un drenaje, uno reservado para PT / válvula de aire. |
| Accesorios opcionales (costo adicional): | Barra de magnesio, manual, impresión de logotipo en tanques, válvula PT, válvula de aire, válvula de retención |
