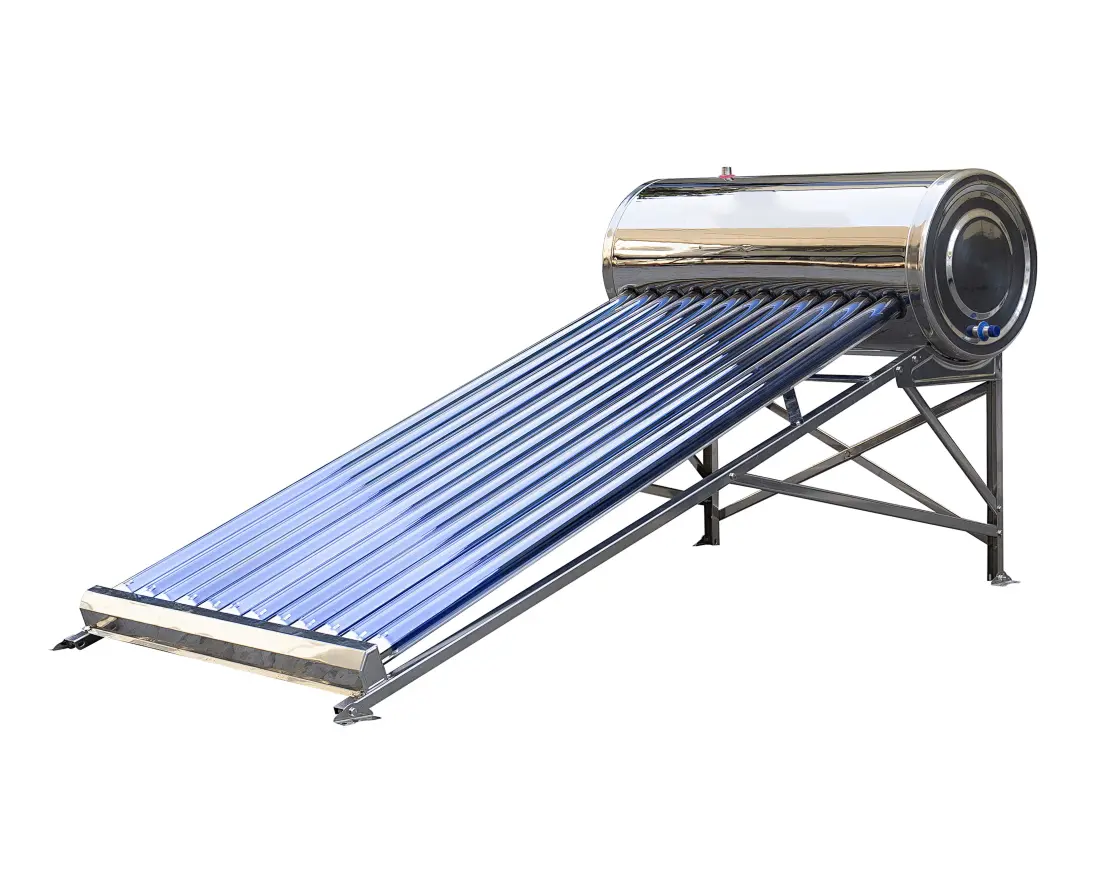

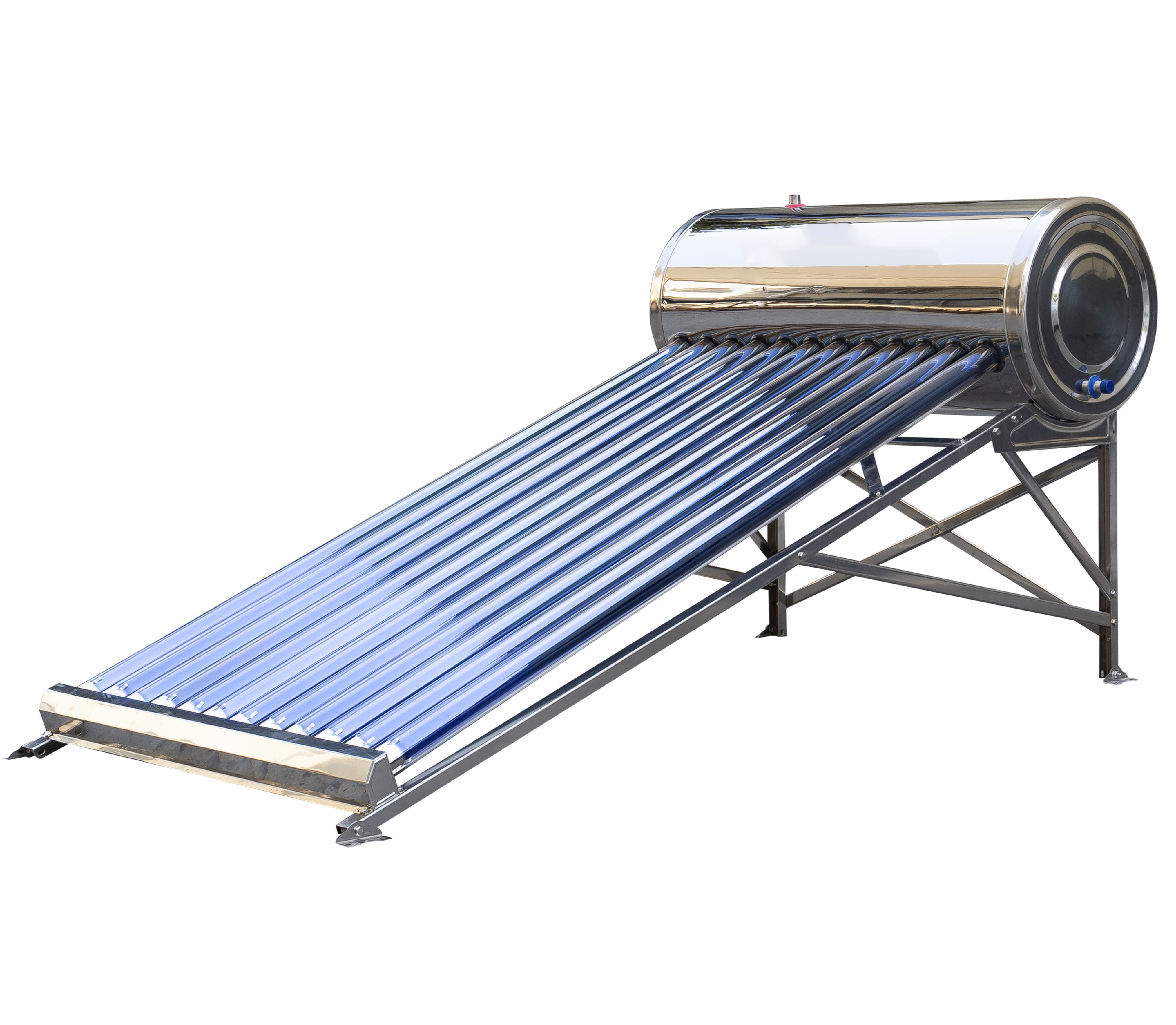

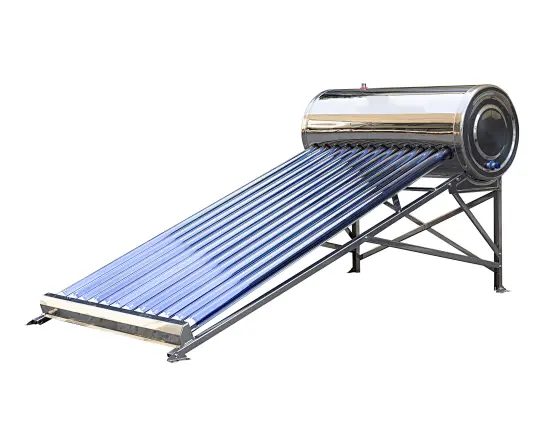

U-type frame Stainless steel 0.41mm standard quality
U-type frame Stainless steel 0.41mm standard quality
U-type frame Stainless steel 0.41mm standard quality

U-type frame Stainless steel 0.41mm standard quality

Model NO.
58/1800/SS-MU-S
Delivery:
FOB
Minimum order quantity:
20 sets
Supply Ability:
300 sets / Day
Country of Origin:
China
Stock Time:
20 Days
Quantity:

Overview

Product Info

ModelQuantity/40HQ
58/1800/8SS-MU-S238
58/1800/10SS-MU-S193
58/1800/12SS-MU-S171
58/1800/15SS-MU-S150
58/1800/18SS-MU-S113
58/1800/20SS-MU-S104
58/1800/24SS-MU-S88
58/1800/30SS-MU-S67

Specification

Inner tank304-2B stainless steel (food grade), argon arc welding. thickness 0.41 mm. 360mm diameter
Outside tankStainless steel, Thickness: 0.31mm diameter 450/460mm
Insulation layerPUF polyurethane foam, 45/50mm thick, density: 35 kg/m3
Frame (as the photo above)U-type of galvanized steel, angle: 20/38/45 degrees. 1.2mm
Vacuum tubes58 / 1800mm, whole glass vacuum tubes adopt super hard borax and silica glass. Efficiency: 91% -94%, weight 1.95kgs with copper heat pipe
Outlet and inletArgon welding, standard male 3/4 'NPT nipple, one inlet, one outlet and one drain, one reserved for PT/Air valve.
Optional accessories (additional cost)Magnesium bar, manual, logo printing on tanks, PT valve, Air valve, Check valve


Información del producto

ModeloCantidad/40HQ
58/1800/8SS-MU-S238
58/1800/10SS-MU-S193
58/1800/12SS-MU-S171
58/1800/15SS-MU-S150
58/1800/18SS-MU-S113
58/1800/20SS-MU-S104
58/1800/24SS-MU-S88
58/1800/30SS-MU-S67

Especificación

Tanque interior:acero inoxidable 304-2B (grado alimenticio), soldadura por arco de argón. espesor 0.41mm. 360mm de diámetro
Tanque exterior:Acero inoxidable 201, Espesor: 0.31 mm 450/460 mm de diámetro
Capa de aislamiento:Espuma de poliuretano PUF, 50 mm de espesor, densidad: 35 kg / m3
Marco (como la foto de arriba): Tipo U de acero galvanizado, ángulo: 20/38/45 grados. 1.2mm
Tubos de vacio:58/1800 mm, los tubos de vacío de vidrio entero adoptan bórax superduro y vidrio de sílice.Eficiencia: 91% -94%, peso 1.95kgs con tubo de calor de cobre
Salida y entrada Soldadura de argón, niple macho estándar de 3/4 'NPT, una entrada, una salida y un drenaje, uno reservado para PT / válvula de aire.
Accesorios opcionales (costo adicional):Barra de magnesio, manual, impresión de logotipo en tanques, válvula PT, válvula de aire, válvula de retención

  • Type:Evacuated Tube
  • Pressure:Unpressurized
  • Circulation Type:Direct / Open Loop (Active)
  • Heating System:Thermosyphon (Passive); Batch / ICS (Passive)
  • Connection Type:Direct-Plug
  • Installation:Freestanding
  • Housing Material:Stainless Steel
  • Certification:GS; CSA; CE; UL
  • Capacity:80L/100L/120L/150L/180L/200L/240L/300L
  • Place of Origin:China
  • Brand Name:OEM
  • Model Number:58/1800/SS-MU-E
