Specifications:

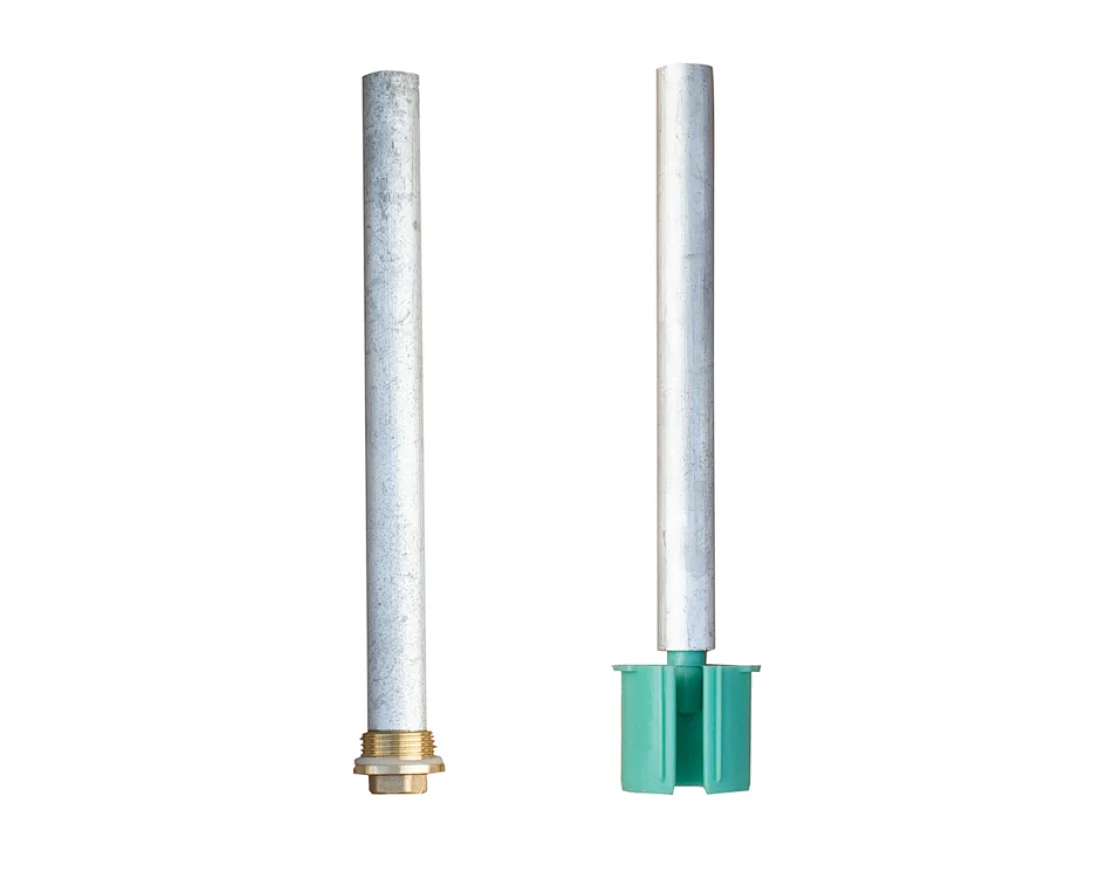

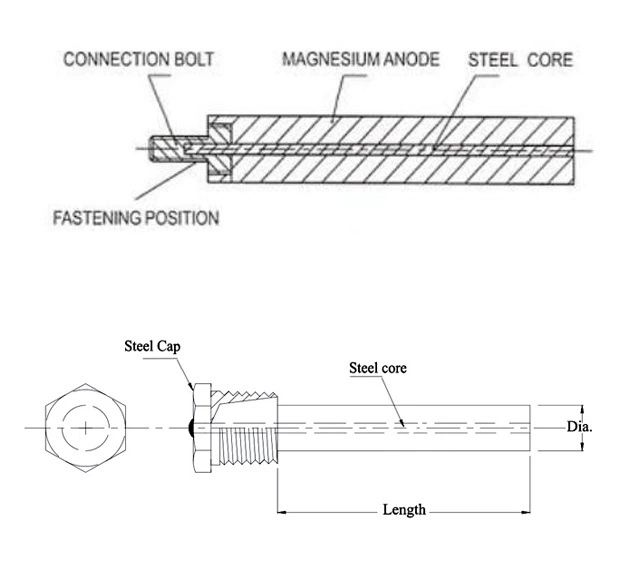

Magnesium Anode Water Heaters parts are excellent sacrificial rods, used to protect the inside metal surface of your water heater tank. The magnesium corrodes instead of your tank. The standard anodes can be used for all tank sizes and types (all brands) , are available optionally with a M4,M6,M8 bolt,etc. with a screw connection or adapter G ¾“, G1“, G 1 ¼“, G 1 ½“,etc.
Application:
Magnesium alloy extruded rods Anodes are mainly used in water heater, boiler, heat exchanger, water tank,etc.It has properties of softing water, de-dirt residual ,en-longing the working life of container.
Chemical compositions Extruded Alloy Magnesium Anode Rods:
Type | Al | Zn | Mn | Fe | Cu | Ni | Si | Others | Mg |
AZ31B | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | 0.005 | 0.01 | 0.001 | 0.1 | 0.3 | Balance |
Mg-Mn | 0.01 | - | 0.5-1.3 | 0.03 | 0.02 | 0.001 | 0.05 | 0.3 | Balance |
Electrochemical properties of Extruded Alloy Magnesium Rods Anodes:
Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/g) | Current efficiency (%) |
AZ31B | 1.50-1.55 | 1.45-1.50 | ≥1.105 | ≥50 |
Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
* We can do according to customized size and requirements.
